Name: ROG STRIX X670E-F GAMING WIFI - X670/AM5/DDR5/ATX
Brand: Asus
Price: 349.99 EUR
Availability: InStock

Accueil

Carte mère

Asus

Asus ROG STRIX X670E-F GAMING WIFI

Asus ROG STRIX X670E-F GAMING WIFI ATX - Carte mère Asus - 2

Asus ROG STRIX X670E-F GAMING WIFI ATX - Carte mère Asus - 3

Asus ROG STRIX X670E-F GAMING WIFI ATX - Carte mère Asus - 4

Asus ROG STRIX X670E-F GAMING WIFI ATX - Carte mère Asus - 5

Asus ROG STRIX X670E-F GAMING WIFI ATX - Carte mère Asus - 6

Photos non contractuelles.

Partager la fiche

349€⁹⁹

116€⁶⁶x3 sans frais

Livraison Offerte

Livraison offerte

Ajouter au panier

WEB

En Stock

Livraison chez vous :

Standard : jeudi 2 mai

Express : mardi 30 avr.

Relais colis : jeudi 2 mai

Magasin

EN STOCK

En stock dans 3 Magasins

STE GENEVIEVE DES BOIS

Pas de stock

VILLENEUVE D'ASCQ

Pas de stock

Voir les dispos magasin

Partager la fiche

Caractéristiques principales

•Utilisation : Gamer"
•Utilisation : Pro"
•Utilisation : Multimédia"
•Utilisation : Art Graphique"
•Socket : AMD AM5"
•Format Carte-mère : ATX"
•Connectivité : Wifi"
•Nombre de barrettes RAM : 4"
•Norme Mémoire RAM : DDR5"
•LED : RGB"
•Nombre de Port M2 : 4"
•Chipset : AMD X670"
•Capacité RAM : 128Go"
•Fréquence RAM : 5000MHz PC40000"
•Fréquence RAM : 4800MHz PC38400"
•Fréquence RAM : 5400MHz PC43200"
•Fréquence RAM : 5800MHz PC46400"
•Fréquence RAM : 6000MHz PC48000"
•Fréquence RAM : 6200MHz PC49600"
•Fréquence RAM : 6400MHz PC51200"
•Fréquence RAM : 5200MHz PC41600"
•Fréquence RAM : 5600MHz PC44800"
•Vidéo intégrée : Sans GPU"
•Interface Disque : SATA III"
•Interface Disque : M.2"
•Nombre de Port SATA : 4"
•Connecteurs carte mère : Connecteur standard"

Voir les détails techniques

Présentation

Asus ROG STRIX X670E-F GAMING WIFI

AFFICHER LA SUITE

Voir tous les articles Asus

Voir les autres carte mère Asus

Détails Techniques

Détails techniques

Specifications
CPU	AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
Chipset	AMD X670
Memory	4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports AMD EXTended Profiles for Overclocking (EXPO™)
	OptiMem II
	* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
	* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics	1 x DisplayPort*
	1 x HDMI® port**
	* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
	**Supports max. 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	AMD Ryzen™ 7000 Series Desktop Processors*
	1 x PCIe 5.0 x16 slots (supports x16 mode)
	AMD X670 Chipset**
	1 x PCIe 4.0 x16 slot (supports x4 mode)
	1 x PCIe 3.0 x1 slot
	* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
Storage	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
	AMD Ryzen™ 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	AMD X670 Chipset
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	4 x SATA 6Gb/s ports
	*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet	1 x Intel® 2.5Gb Ethernet
	ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6E
	2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
	Supports 2.4/5/6GHz frequency band
	Bluetooth v5.2
USB	Rear USB (Total 12 ports)
	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
	9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C®)
	2 x USB 2.0 ports
	Front USB (Total 7 ports)
	1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
	Impedance sense for front and rear headphone outputs
	Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
	Supports up to 32-Bit/384 kHz playback
	Audio Features
	Audio Shielding
	Savitech SV3H712 AMP
	Gold-plated audio jacks
	Rear optical S/PDIF out port
	Premium audio capacitors
	Audio cover

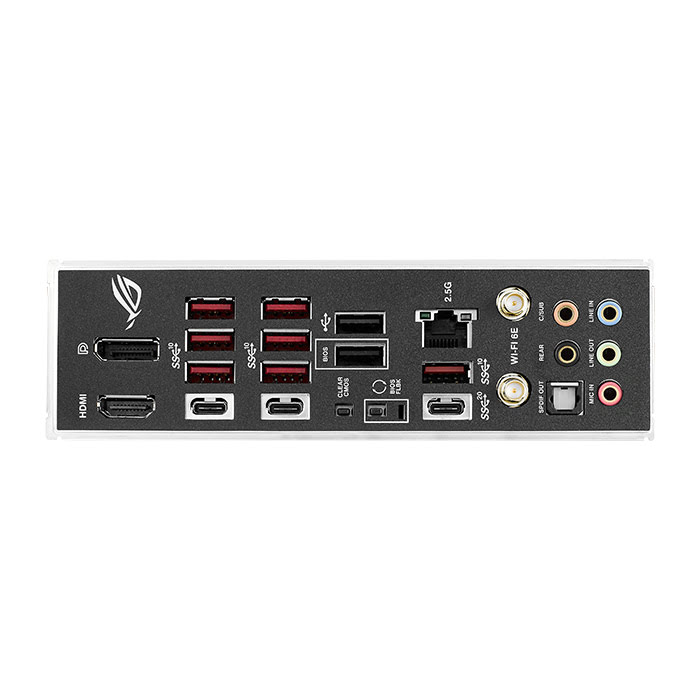

Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x Type-C®)
	9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 x USB Type-C®)
	2 x USB 2.0 ports
	1 x DisplayPort
	1 x HDMI® port
	1 x Wi-Fi Module
	1 x Intel® I225-V 2.5Gb Ethernet port
	5 x Gold-plated audio jacks
	1 x Optical S/PDIF out port
	1 x BIOS FlashBack™ button
	1 x Clear CMOS button
Internal I/O Connectors Fan and Cooling related	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	5 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	2 x 8-pin +12V Power connector
	Storage related
	4 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
USB	1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x Aura RGB header
	1 x CPU Over Voltage jumper
	1 x Front Panel Audio header (AAFP)
	1 x 20-3 pin System Panel header with Chassis intrude function
	1 x Thermal Sensor header
	1 x Thunderbolt™ header
Special Features	Extreme Engine Digi+
	5K Black Metallic Capacitors
	ASUS Q-Design
	M.2 Q-Latch
	PCIe Slot Q-Release
	Q-DIMM
	Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	Q-Slot
	ASUS Thermal Solution
	M.2 heatsinks
	M.2 heatsink backplate
	VRM heatsink design
	ASUS EZ DIY
	BIOS FlashBack™ button
	BIOS FlashBack™ LED
	Clear CMOS button
	ProCool II
	Pre-mounted I/O shield
	SafeSlot
	SafeDIMM
	Aura Sync
	Aura RGB header
	Addressable Gen 2 headers
Software Features	ROG Exclusive Software
	GameFirst VI
	ROG CPU-Z
	Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
	Sonic Radar III
	DTS® Sound Unbound
	Anti-virus software
	ASUS Exclusive Software
	Armoury Crate
	AIDA64 Extreme (60 days free trial)
	Aura Creator
	Aura Sync
	Fan Xpert 4 (with AI Cooling II)
	Power Saving
	Two-Way AI Noise Cancellation
	AI Suite 3
	TPU
	DIGI+ VRM
	Turbo app
	PC Cleaner
	MyAsus
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	ASUS CrashFree BIOS 3
	ASUS EZ Flash 3
	ASUS UEFI BIOS EZ Mode
	Dynamic OC Switcher
	FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

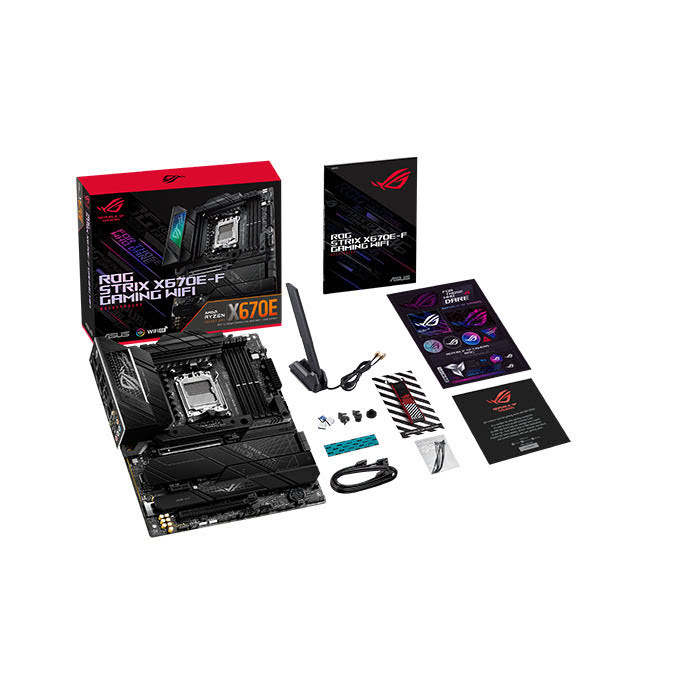

Accessories	Cables
	2 x SATA 6Gb/s cables
	Additional Cooling Kit
	1 x Thermal pad for M.2
	Miscellaneous
	1 x ASUS Wi-Fi moving antennas
	1 x Cable ties pack
	1 x M.2 Q-Latch package for M.2 backplate
	1 x M.2 Q-Latch package
	1 x ROG key chain
	1 x ROG Strix stickers
	1 x ROG Strix thank you card
	2 x Rubber Packages for M.2
	1 x Rubber Package for M.2 backplate
Documentation	1 x User guide
Operating System	Windows® 11 64-bit
Form Factor	ATX Form Factor
	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
